Maxpro Base Trike - Our wheels, your ideas on top
 |
|
| Available with 100 & 120cm width and full suspension front and rear |
- Description
- Technical Specification
- Warranty
- Prices & Options

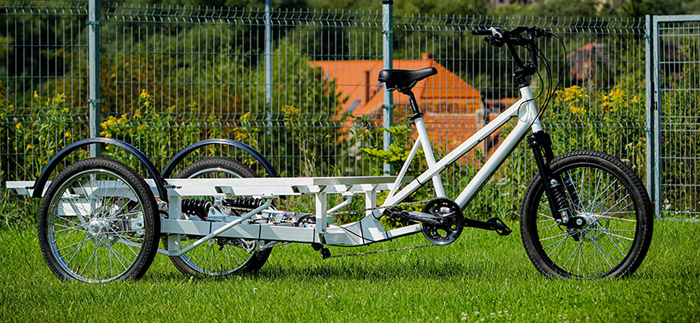

Base Trike by Maxpro is the perfect way to turn your ideas into life. We provide you the wheels and you design and build the rest, just the way you want it.
Dimensions and weight:
| Vehicle weight | 40-65kg depending on version |
| Max payload | 220kg payload plus 90kg rider, 310kg in Total |
| Length | 2550mm (100'') |
| Width | 1200mm (47.3'') |
| Height | N/A |
| Cargo Dimensions | N/A |
Detailed Technical Specification:
| Frame | Steel, Maxpro handmade welded with MIG/TIG technology |
| Body | Steel MIG welded with side HPL panels |
| Headsets | Neco with machined cartdrige bearings |
| Handlebar | Zoom, riser bar |
| Stem | Zoom Ahead 1.1/8 |
| Brakes (rear) | Big Magura Twin Hydraulic brake system with 180mm disc rotors |
| Brakes (front) | Tektro or Acor V-brake with Magura brake lever with locking mechanism |
| Bell | BBB bicycle bell |
| Shifters | SRAM gripshift |
| Seatpost | Zoom 400mm long, 27.2mm |
| Saddle | BBB Comfort saddle |
| Bottom Bracket | Shimano UN52 sealed cartdridge |
| Crankset | Prowheel 46T as standard, Sr Suntour for special order only |
| Chain | KMC brand with stainless steel |
| Differential | Go Kart diff modified by Maxpro |
| Axles | Maxpro CNC machined |
| Forks | Maxpro handmade with CNC machined fork crowns |
| Front Wheel | 24'' Halo SAS with 48 stainless steel Halo Spokes and Joytech or Novatec hub |
| Rear Wheels | 23'' (19*1.2'') heavy duty steel rims with chromed surface and anodhized M3 spokes |
| Front Derailleur | N/A Signgle blade as standard, Shimano or Sram front derailleurs for additional charge only |
| Rear Derailleur | Shimano Altus or SRAM SX4* |
| Front Tyre | 24''*1.75/2.00 Schwalbe |
| Rear Tyres | 23*2.25'' (19*2.1/4'') Schalbe Moped heavy duty tyres |
| Pedals | BMX platforms |
| Housings | Jagwire |
| Lights | LED AA battery lights |
| Cassette | Shimano 11-32T 8 speed |
Warranty on Base Trike
| Main Frame | 3 years warranty |
| Body | N/A |
| Brake system | 2 years for Big Twins (warranted by Magura, Germany) |
| Axles | 3 years warranty |
| CNC machined parts | 3 years warranty |
|
| PRODUCT | PRICE GBP | PRICE Euro | PRICE USD |
| Rolling Chassis (frame) | Contact us for quote | Contact us for quote | Contact us for quote |
All prices exclude VAT. For customers with valid EU VAT number the rate is 0%. EU customers without valid VAT number have to be charged 23% of VAT applicable.
UK customers have to pay VAT rate of 20%
Overseas customers from outside of EU do not pay VAT and the rate is 0%.
